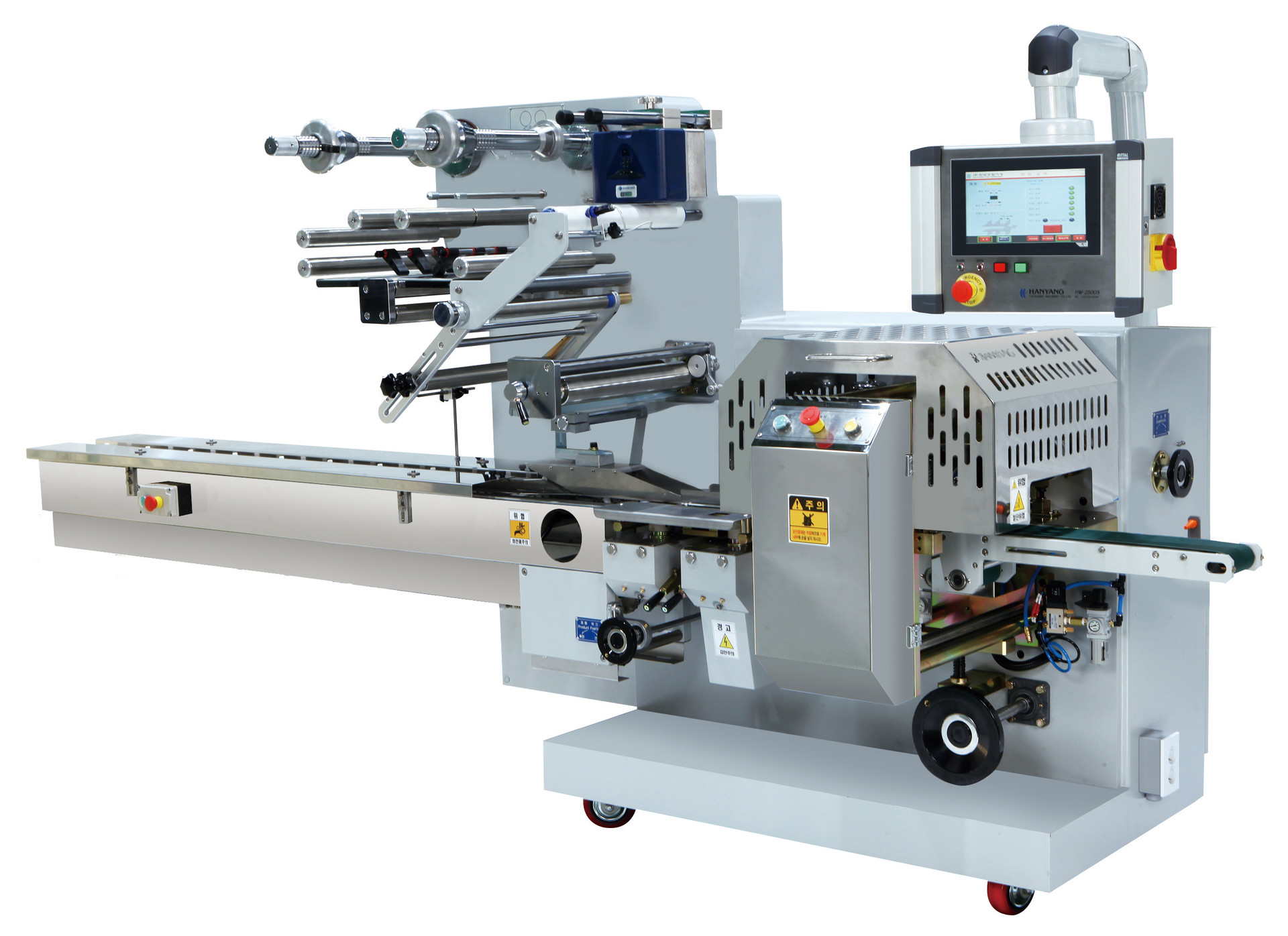

HW-3000
포장재질  셀롤로스, 폴리프로필렌, 각종 증착 필름, PVC, 열접착 가능한 모든 필름
표준 사양
제품규격   Product Dimensions

Width
최대 230mm
Max 230mm
높이
Height
최대 60mm
Max 60mm
길이
Length
최대 400mm
Max 400mm
* 이 외의 특수 사양 제작 가능함.
Others are available for your option.
필름규격   Reel Width
필름폭
Standard
최대 430(520)mm
Max 430(520)mm
롤외경
Outer diameter
최대 350mm
Max 350mm
보빈규격
Core diameter
76mm
무게
Weight
최대 40kg
Max 40kg
전기사양   Electrical specifications
전기
Mains
220V, 3-P 또는 380V, 3-P
220V, 3-P or 380V, 3-P
소비전력
Consumption
5kw
히터사양
Heater elements
220V
구동모터
Motor
1마력
0.75kw (Geared motor / Induction motor)
선택 사양
인자기
Printer-coder
체인콘베이어
Barrette transport system
각종 자동 공급장치
Defferent types of automatic product feeding systems
M-씰링 장치
Gusset device
조정포머
Adjustable folding box for a variety of products
습한 작업 환경에 따른 재질 변경
Stainless steel modification for humid environments
필름 자동 연결장치
Film auto splicer
적용 제품
식품류
비스킷, 스낵, 초콜릿, 빵, 캔디, 빙과류, 냉동식품, 어육제품, 맛김 등
공산품
스펀지, 비누, 베어링, 각종 테이프, 문구류, 의약품 등
* 그 밖의 단수 혹은 복수물을 용기를 사용하지 않은 상태로 포장 가능함.
